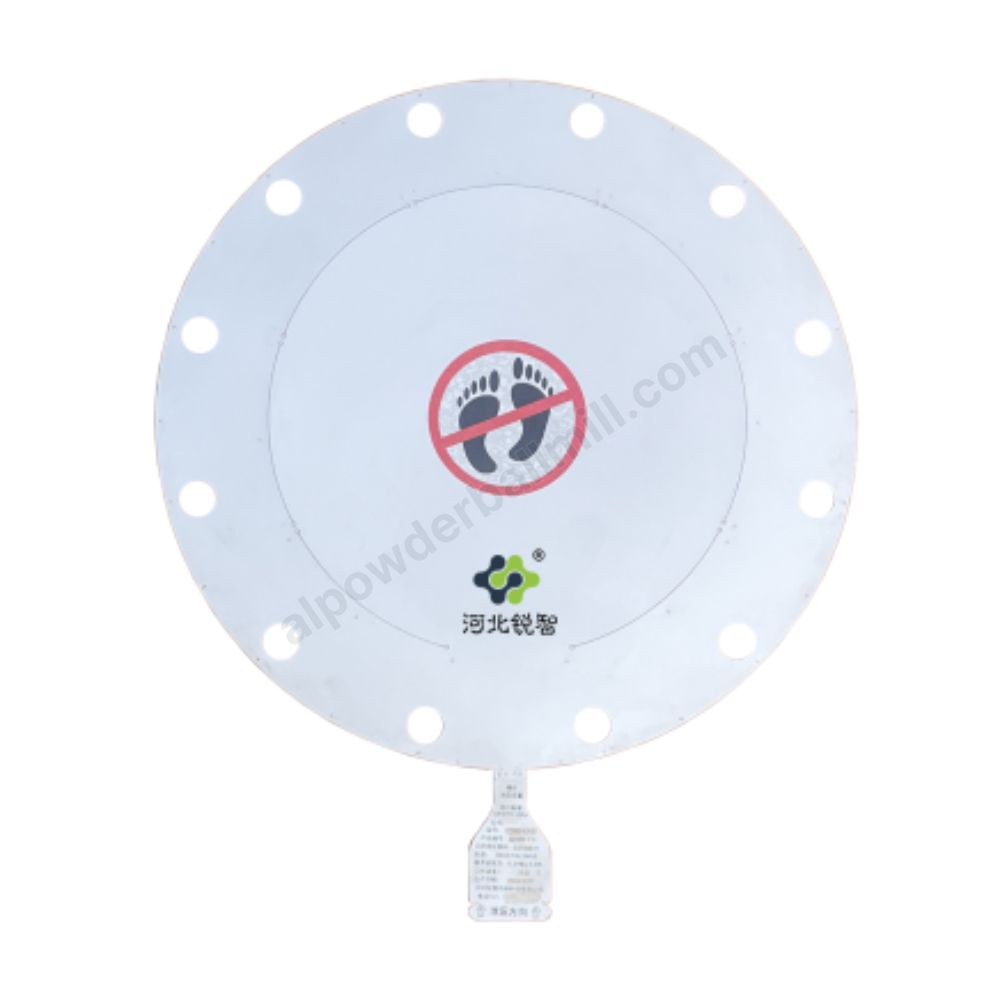

Explosion Venting Panels

Product Introduction:

The explosion-release plate refers to a non-heavy closed overpressure relief device, consisting of an explosion-release plate and a clamp. It is mainly used in outdoor explosion-releasing environments such as dust collectors, elevators, and silos with low pressure and large explosion-releasing area. Avoid overpressure deformation or explosion of the container, reducing the risk of secondary explosion

Inquire Now Silo Mixer

Product Advantages

Accurate and stable opening pressure

Electronic signal control can be optional

Debris-free explosion process

Implement EU standard EN14797-2006

CE certification

Technical Performance Indicators

Items	Parameters
Applicable dust	ST1 and ST2
Pressure relief efficiency	100%
Pstat	0.01MPa
Pressure relief temperature	Room temperature
Blasting allowance	±25%
Temperature	＜120℃
Material	Stainless steel
Applicable media	Gas/Dust
Note	Pay attention to fatigue and negative pressure resistance
Clamter	Optional
Backpressure bracket	Added

Technical Parameters Specifications

Product Specifications	Effective pressure relief area (m³)	External dimensions A1xB1(mm)	Bolt center distance A2xB2(mm)	Flange hole n-φ
RZ-240*310-0.01-SS	0.0744	335x400	300x375	18-14
RZ240*410-0.01-SS	0.0984	335x500	300x470	20-14
RZ310*410-0.01-SS	0.1271	400x500	375x470	22-14
RZ410*410-0.01-SS	0.1681	500x500	470x470	24-14
RZ410*580-0.01-SS	0.2378	500x670	470x640	28-14
RZ410*910-0.01-SS	0.3731	500x1000	470x970	36-14
RZ690*690-0.01-SS	0.4761	780x780	750x750	20-14
RZ580*910-0.01-SS	0.5278	670x1000	640x970	40-14
RZ840*840-0.01-SS	0.7056	950x950	900x900	36-14
RZ690*1090-0.01-SS	0.7521	800x1200	750x1150	26-14
RZ910*910-0.01-SS	0.8281	1000x1000	970x970	48-14
RZ1100*1150-0.01-SS	1.2650	1190*1240	1160*1210	52-14

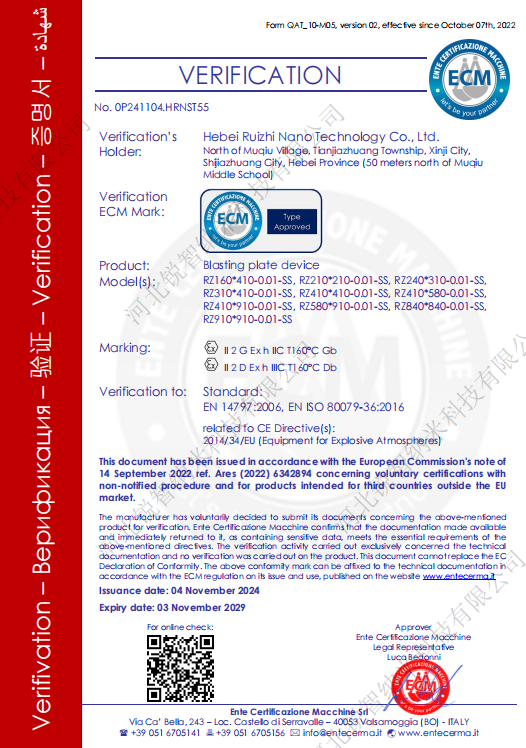

CE Certification

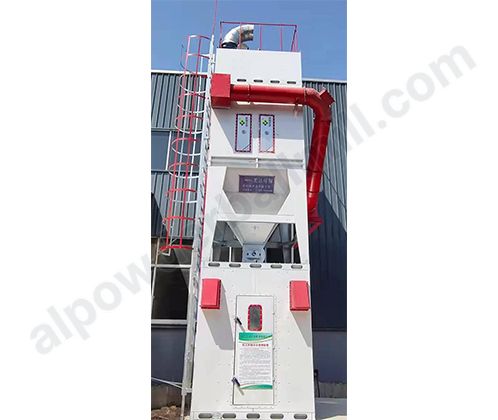

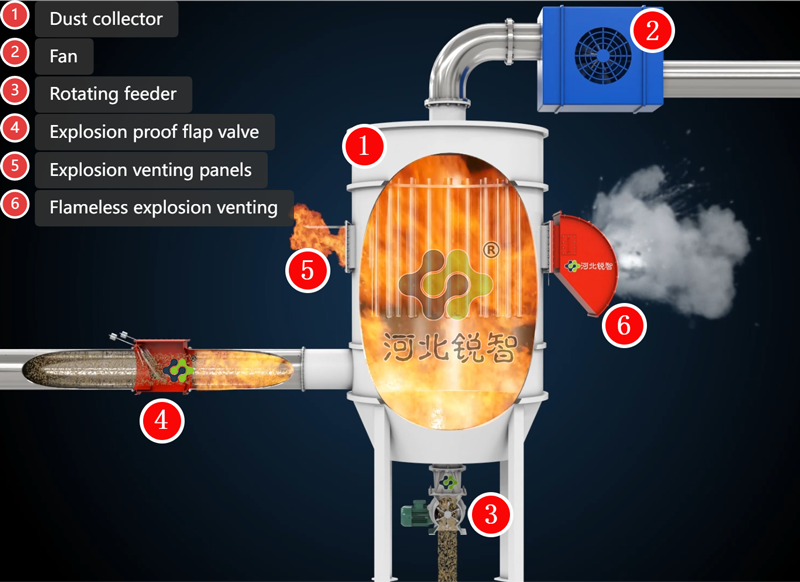

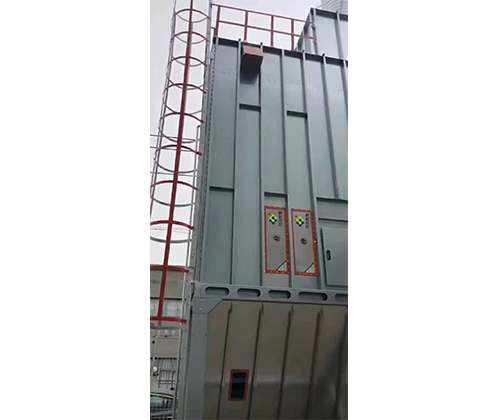

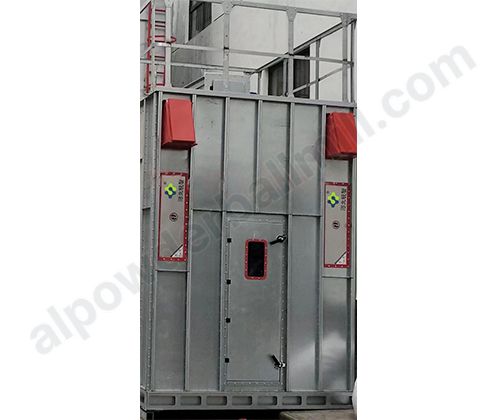

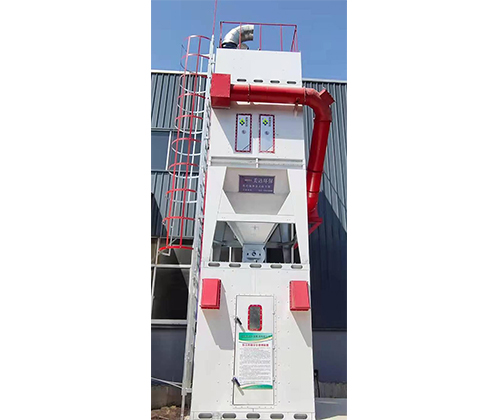

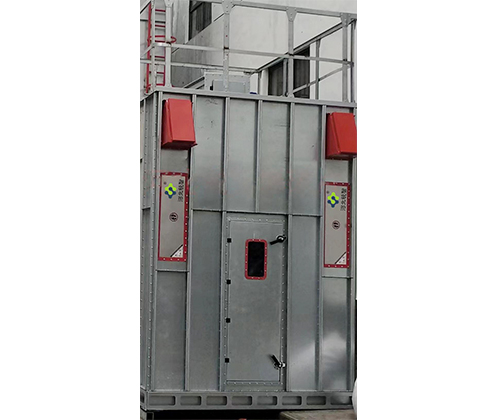

Application Scenario

Core Products

Aluminum Powder Classifier Milling System

Aluminum Powder Classifier Milling system is an innovative device that integrates dry milling and dynamic classification of materials.

Ball Mill

Ball mill is the key equipment for crushing materials after they are broken. The cylinder is generally made of welded steel plates, closed at both ends with end covers, and the inner wall of the cylinder is inlaid with wear-resistant lining to prevent the cylinder from wear.

Explosion Isolation Flap Valve

The explosion-proof flap valve is a pressure differential self-operated dust explosion isolation valve that does not require external electrical equipment.
