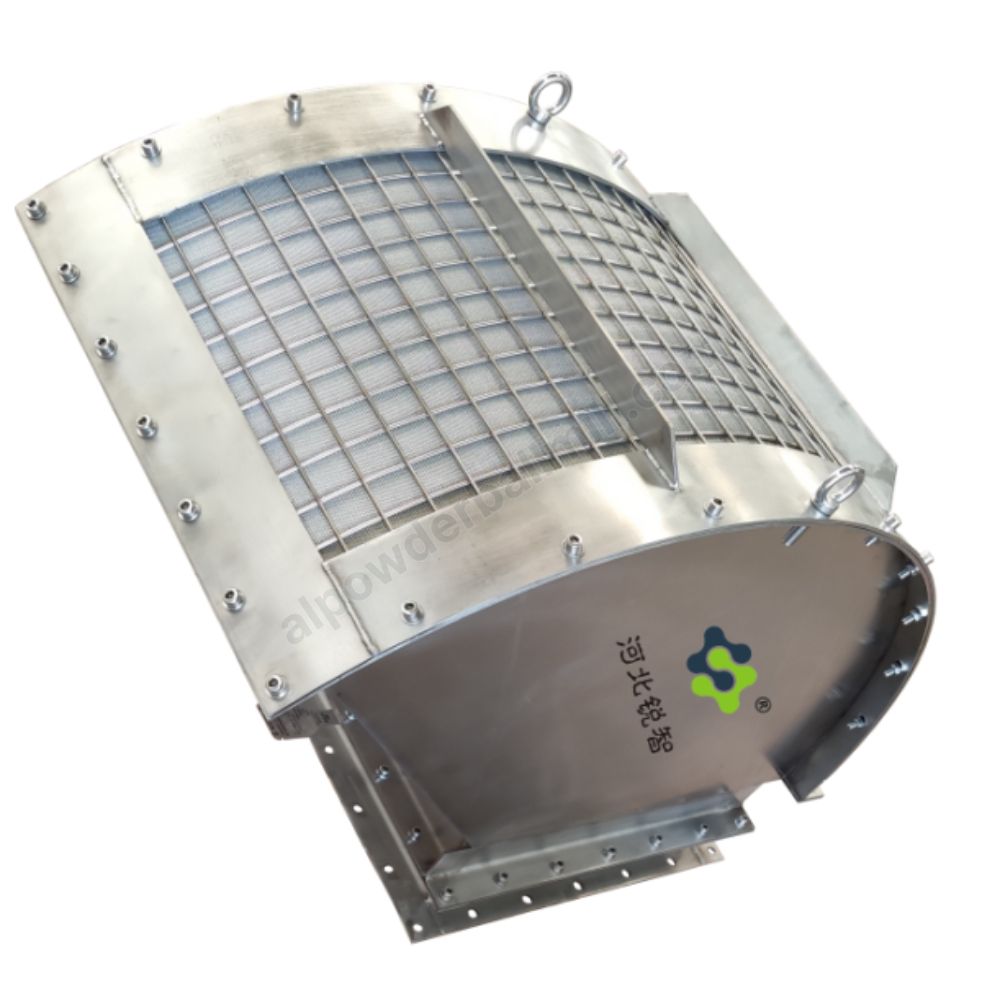

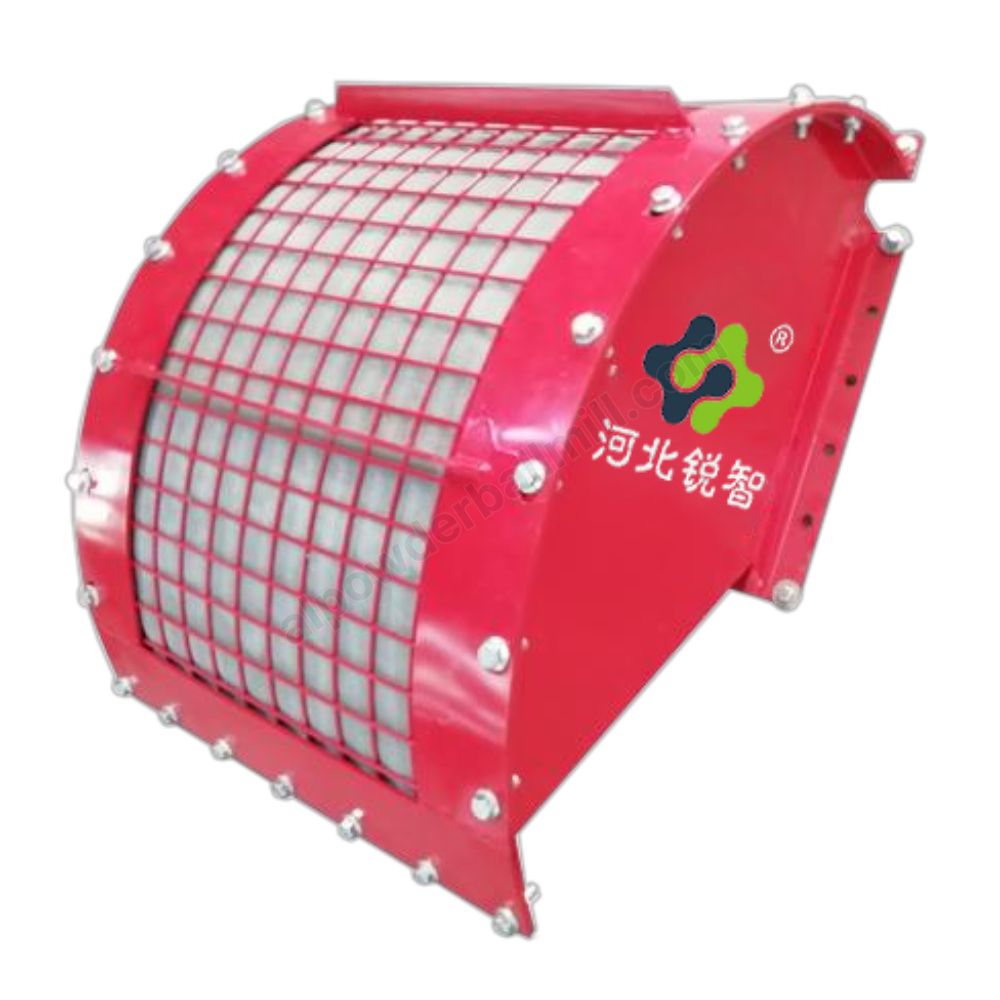

Flameless Explosion Venting

Product Introduction:

Flameless explosion venting primarily consists of a vent panel and a flame arrester. When an explosion occurs, the vent panel immediately opens to release pressure. As the fireball passes through the open vent panel, the flame arrester extinguishes the flames and reduces the temperature of the hot gases. It is typically used for indoor explosion venting where venting is not possible to a safe outdoor area. It protects the integrity of the equipment and reduces the risk of secondary explosions.

Inquire Now Explosion Venting Panels

Product Advantages

Flameproof screen is made of 304 stainless steel.

Ruizhi explosion-proof valves are standard valve components and are well-made.

Electronic signal control is optional.

Complies with EU standard EN16009-2011.

CE certified.

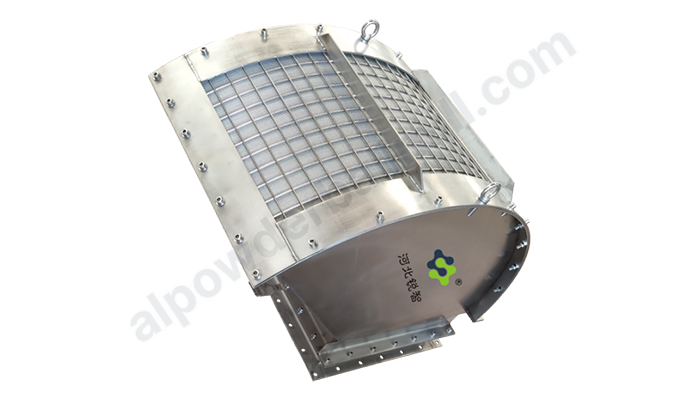

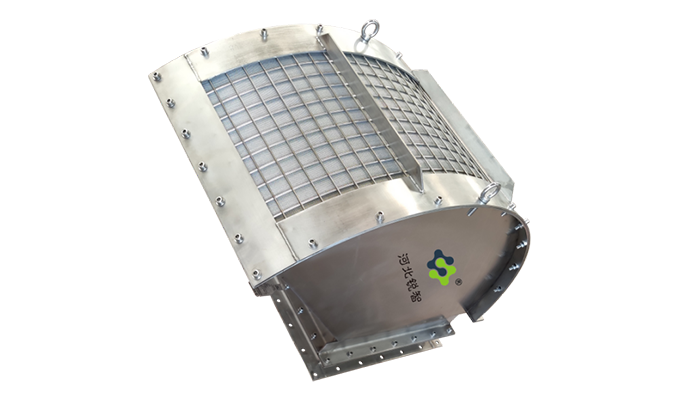

Technical Performance Indicators

Items	Parameters
Applicable dust	ST1 and ST2
Explosion relief efficiency	80%
Pstat	0.01MPa
Blasting tolerance	±25%
Material	Carbon steel and stainless steel

Technical Parameters Specifications

Product Specifications	Effective pressure relief area (m³)	External dimensions A1xB1(mm)	Bolt Center Distance A2xB2(mm)	Flange hole n-φ
RZWY-F240*310	0.0595	335x400	300x375	18-12
RZWY-F240*410	0.0787	335x500	300x470	20-12
RZWY-F310*410	0.1017	400x500	375x470	22-12
RZWY-F410*410	0.1345	500x500	470x470	24-12
RZWY-F410*580	0.1902	500x670	470x640	28-12
RZWY-F410*910	0.2985	500x1000	470x970	36-12
RZWY-F690*690	0.3809	780x780	750x750	20-12
RZWY-F580*910	0.4222	670x1000	640x970	40-12
RZWY-F840*840	0.5645	950x950	900x900	36-12
RZWY-F690*1090	0.6017	800x1200	750x1150	26-12
RZWY-F910*910	0.6625	1000x1000	970x970	48-12
RZWY-F1100*1150	1.0120	1190*1240	1160*1210	52-12

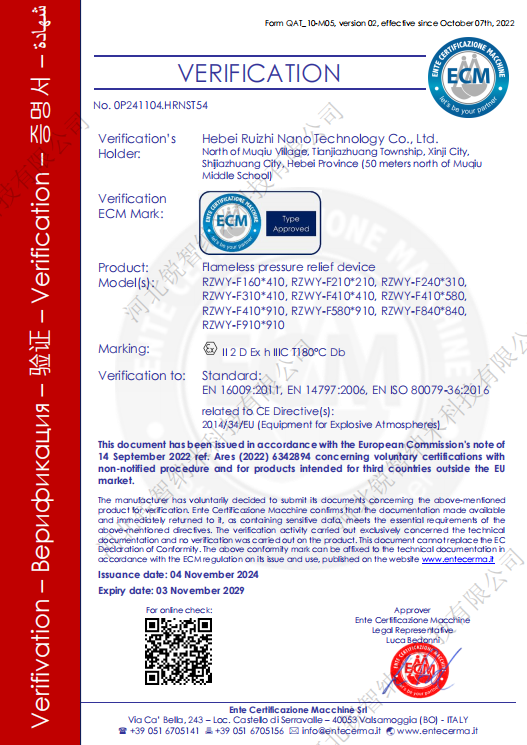

CE Certified

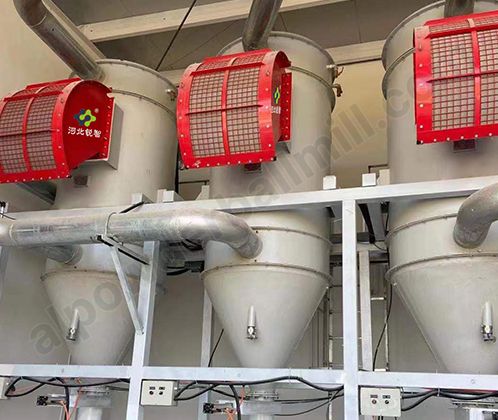

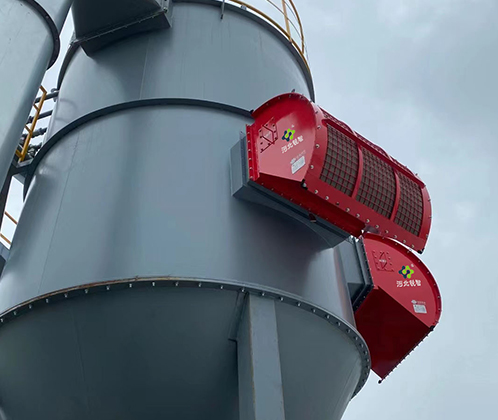

Application Scenario

Core Products

Aluminum Powder Classifier Milling System

Aluminum Powder Classifier Milling system is an innovative device that integrates dry milling and dynamic classification of materials.

Ball Mill

Ball mill is the key equipment for crushing materials after they are broken. The cylinder is generally made of welded steel plates, closed at both ends with end covers, and the inner wall of the cylinder is inlaid with wear-resistant lining to prevent the cylinder from wear.

Explosion Isolation Flap Valve

The explosion-proof flap valve is a pressure differential self-operated dust explosion isolation valve that does not require external electrical equipment.

FAQ

Q1 What qualifications and certifications does your company have?

Our company is ISO9001:2015 certified, with CE certified dust explosion-proof equipment. Some products comply with EN standards. Ruizhi is also a member of the Fire and Explosion Prevention Working Group of the National Committee for Machinery Safety Standardization.

Q2 Is there independent intellectual property rights and third-party testing?

Yes. We own several patents in explosion-proof systems and can provide third-party test reports such as CNAS and CE.

Q3 How long is the delivery cycle?

Standard equipment delivery is 5–9 weeks. Spare parts are usually in stock for fast shipping.

Q4 How to ensure packaging and transportation?

All products are packed in moisture-proof, anti-static, shock-resistant wooden cases, suitable for sea and air shipping.

Q5 How long is the warranty period?

We provide remote support, and operator training through manuals and video tutorials.

Service Warranty

If there is any problem with the product quality, we will replace it free of charge. The warranty period is 12 months, and we will provide free remote technical guidance.
