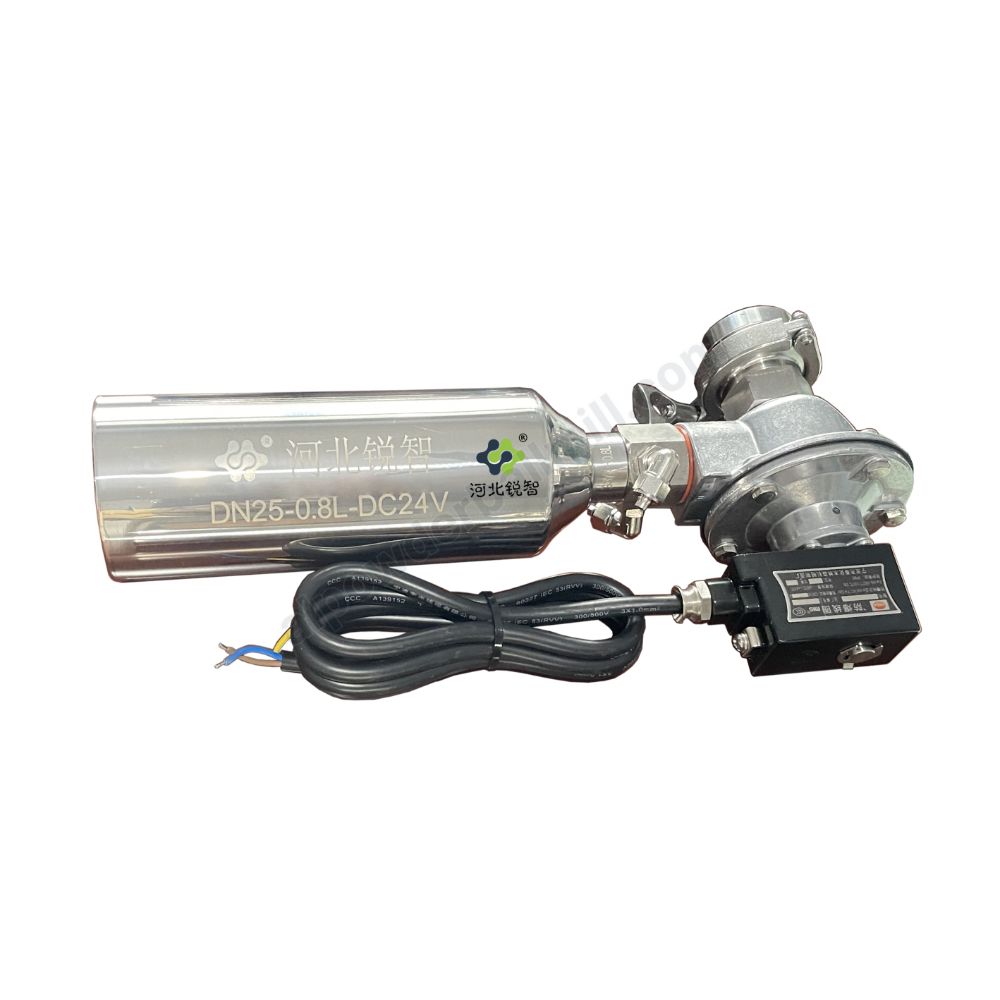

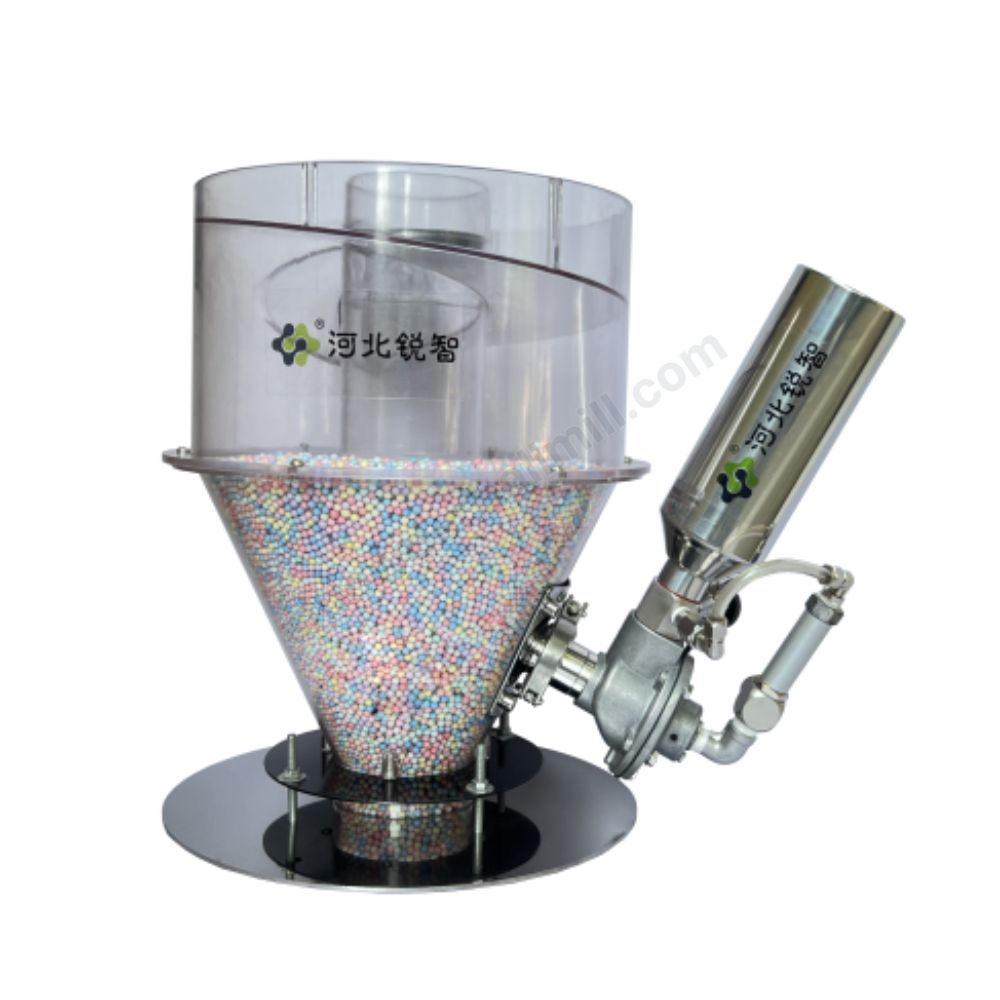

Air Cannon

Product Introduction:

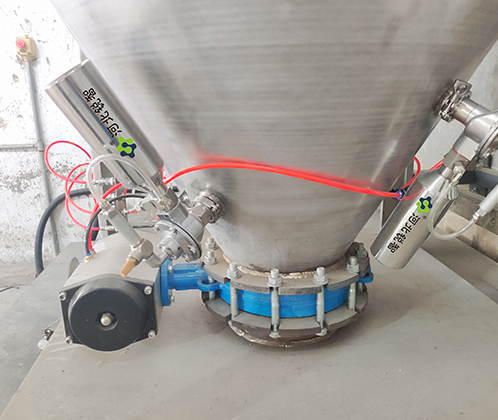

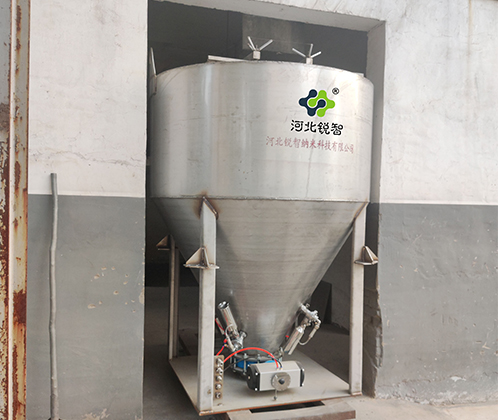

Installing Hebei Ruizhi PDV air cannon on the silo can completely solve the problems of silo blockage, material sticking to the silo, material arching and bridging, etc., so that the material in the silo can flow normally and ensure continuous and stable production.

Air cannons are widely used in the storage and transportation of important bulk materials such as feed, chemicals, food, and grain.

Inquire Now Filter Bags

Product Advantages

Safe and durable, available in electric and pneumatic versions;

Directly acts on the material, with high clearing efficiency;

Easy and quick installation and maintenance;

Simple control, capable of automatic or manual operation.

Long service life, up to 1 million cycles under normal use.

Fast release speed, strong impact force, and effective blockage removal.

Low noise level, below industrial noise standards.

Technical Performance Indicators

Items	Parameters
Pressure range	0.4-0.8Mpa
Operating temperature	-30℃~60℃
Working time interval	＞10s

Technical Parameters Specifications

Pneumatic controlled air cannon			Electric controlled pneumatic air cannon
Product Specifications	Caliber	Energy storage capacity	Product Specifications	Caliber	Energy storage capacity	Voltage
1LG1	1	1L	DC1LG1	1	1L	DC24V
2LG1	1	2L	DC2LG1	1	2L	DC24V
3LG1	1	3L	DC3LG1	1	3L	DC24V
4LG1	1	4L	DC4LG1	1	4L	DC24V
6LG1	1	6L	DC6LG1	1	6L	DC24V
1LG1.5	1.5	1L	DC1LG1.5	1.5	1L	DC24V
2LG1.5	1.5	2L	DC2LG1.5	1.5	2L	DC24V
3LG1.5	1.5	3L	DC3LG1.5	1.5	3L	DC24V
4LG1.5	1.5	4L	DC4LG1.5	1.5	4L	DC24V
6LG1.5	1.5	6L	DC6LG1.5	1.5	6L	DC24V

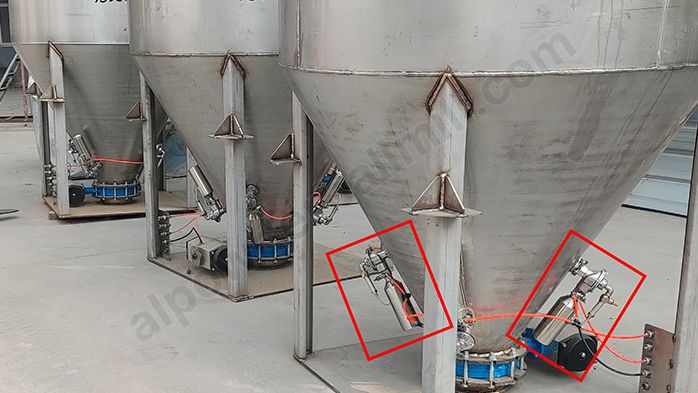

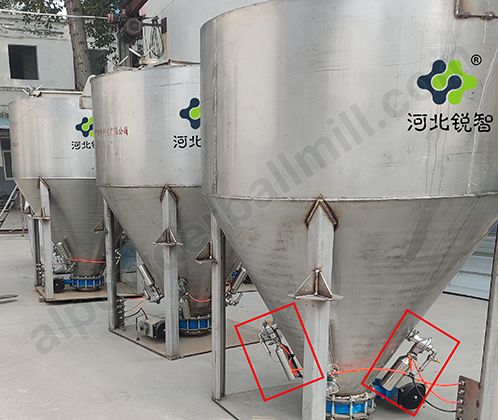

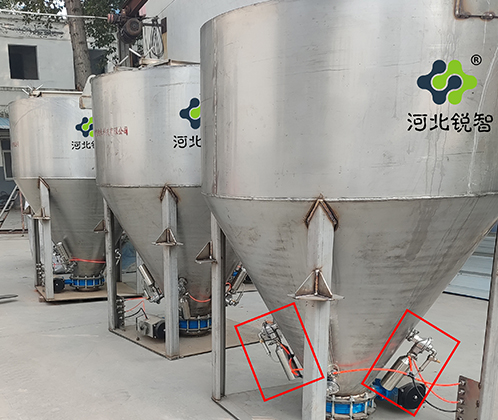

Application Scenario

Core Products

Aluminum Powder Classifier Milling System

Aluminum Powder Classifier Milling system is an innovative device that integrates dry milling and dynamic classification of materials.

Ball Mill

Ball mill is the key equipment for crushing materials after they are broken. The cylinder is generally made of welded steel plates, closed at both ends with end covers, and the inner wall of the cylinder is inlaid with wear-resistant lining to prevent the cylinder from wear.

Explosion Isolation Flap Valve

The explosion-proof flap valve is a pressure differential self-operated dust explosion isolation valve that does not require external electrical equipment.

FAQ

Q1 What qualifications and certifications does your company have?

Our company is ISO9001:2015 certified, with CE certified dust explosion-proof equipment. Some products comply with EN standards. Ruizhi is also a member of the Fire and Explosion Prevention Working Group of the National Committee for Machinery Safety Standardization.

Q2 Is there independent intellectual property rights and third-party testing?

Yes. We own several patents in explosion-proof systems and can provide third-party test reports such as CNAS and CE.

Q3 How long is the delivery cycle?

Standard equipment delivery is 5–9 weeks. Spare parts are usually in stock for fast shipping.

Q4 How to ensure packaging and transportation?

All products are packed in moisture-proof, anti-static, shock-resistant wooden cases, suitable for sea and air shipping.

Q5 How long is the warranty period?

We provide remote support, and operator training through manuals and video tutorials.

Service Warranty

If there is any problem with the product quality, we will replace it free of charge. The warranty period is 12 months, and we will provide free remote technical guidance.
